Screw Block 23

Part. N° 22.1255

CAD DOWNLOAD ►  3D STEP | | Inventor 2012


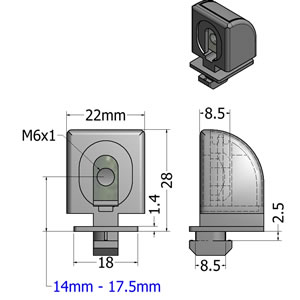

APPLICATIONS
- For mounting panels to profiles 30 series profiles
- Use to mount 1/2" thick panels virtually flush on 30x30. Click here for picture.

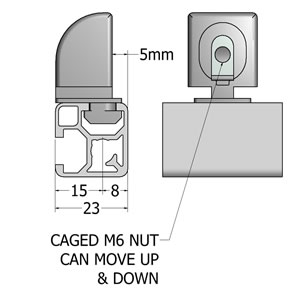

- Caged nut allows adjustment for hole alignment


TECHN. DATA / ITEMS SUPPLIED
- ABS Plastic, Gray
- Qty 1 M6x1 caged steel square nut (installed)
- M6 screw for fastening panel sold separately
- Weight - .011 kg


Click Here For Larger Animation

ASSEMBLY
- Insert tab into T-slot and rotate 90°
- Fasten panel with pan head screws 21.1246 or other M6x1 screw
